Car Motorcycle Auto Parts Exhaust System 304 Stainless Steel Tube Bending Machine Automatic Nc and CNC Pipe Bender Factory in China
Mechanical parts and main technical parameters for SB89CNC-2A1S pipe bending machine*Mainly fit for:Furniture,plumbing and bathing equipment,handle,motorbike.automobilefitting.ship..etcProduct Description 1)Automatic identification of dynamic characteristics of machine tool/work piece-rapid and good......
Send Inquiry
Product Description
Mechanical parts and main technical parameters for SB89CNC-2A1S pipe bending machine
*Mainly fit for:Furniture,plumbing and bathing equipment,handle,motorbike.automobile
fitting.ship..etc
Product Description
1)Automatic identification of dynamic characteristics of machine tool/work piece-rapid and good processing;
2)Return the core and boost with trolley-improve the appearance of corner piece.
3)The Chinese operation prompts +15 inch true color display + touch screen-simple and clear operation.
4)The graphical programming system: the processing procedure can be obtained upon the vertical tube painting system/modification on the screen-5)simple, convenient, rapid and accurate program ming.
6)Resilience measurement- the property of batches of pipes can be compared and measured. Single-step debugging function-the deformation 7)process of pipes is observed closely during mould trial-manufacture.
8)Automatic mould drawing-help significantly develop new products.
9)Comprehensive monitoring: Hydraulic/electrical/drive system, motor phase loss/reversal, voltage, temperature, oil pressure, automatic fault diagnosis, passwords, key, records of working hours/number, for production management.
10)Head of multi-mode bending machine can move around, it can automatically change moulds, and it has high efficiency and high accuracy.
11)Apply to: furniture, auto spare parts (exhaust pipe, silencer),bike frame,refrigeration etc.
12)Suitable materials:Steel pipe,Stainless steel pipe,copper pipe,aluminum pipe,iron etc.

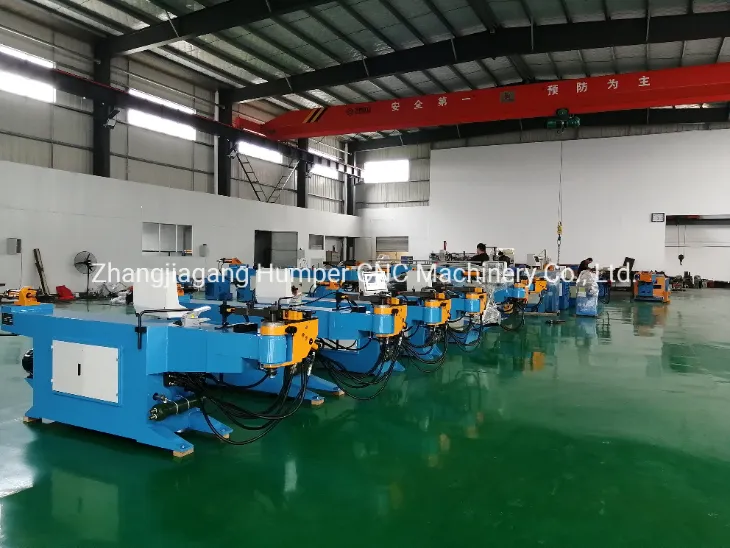

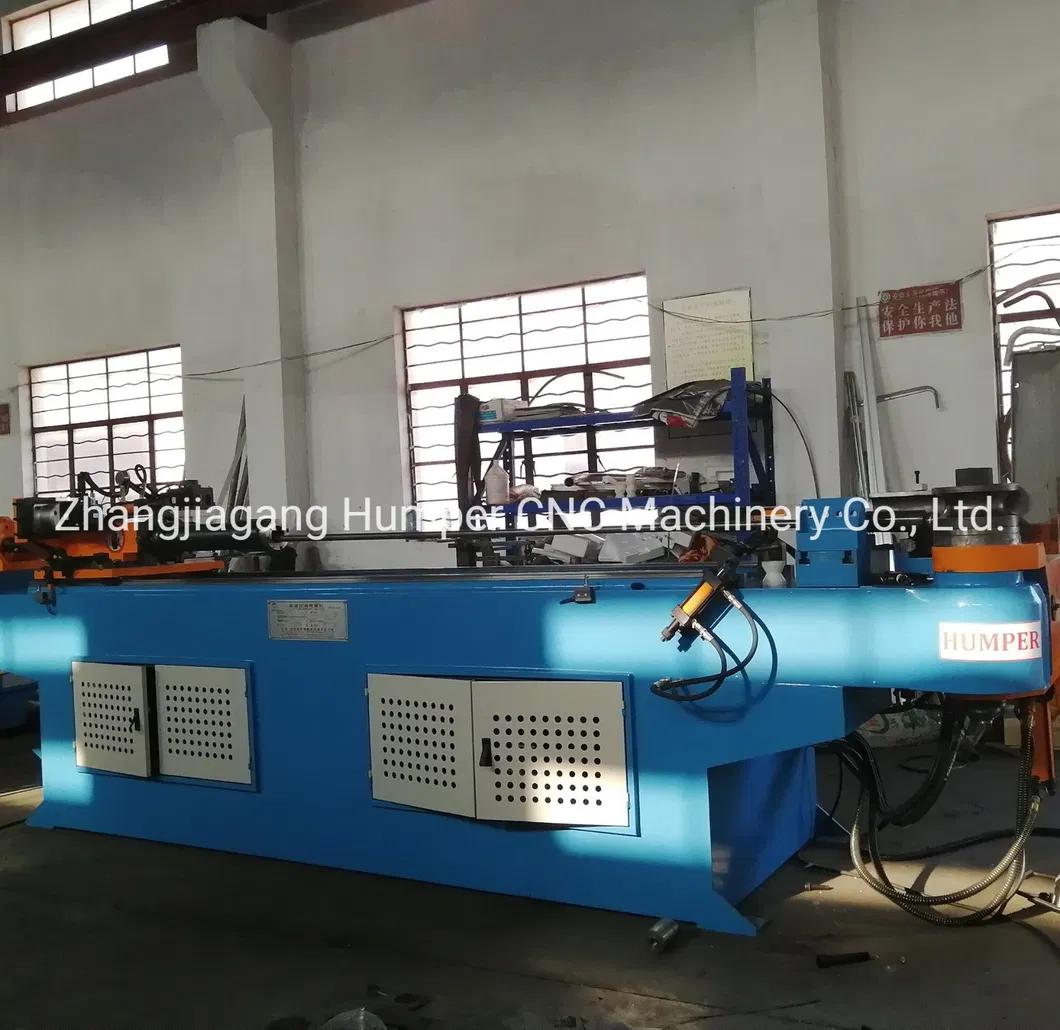

Machine Details:

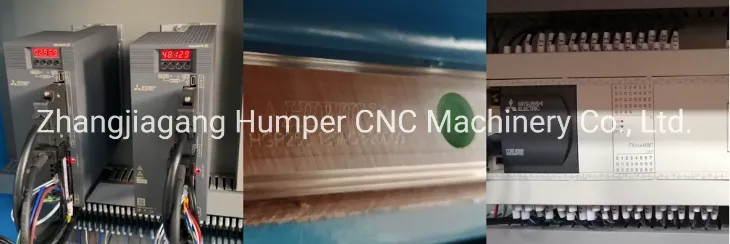

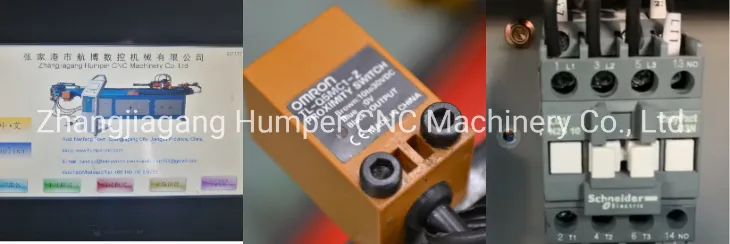

Main Mechanical Parts

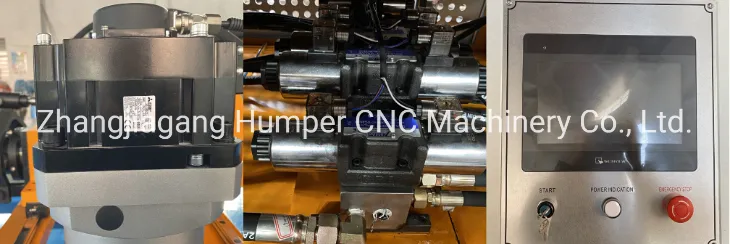

Mechanical Parts And Components

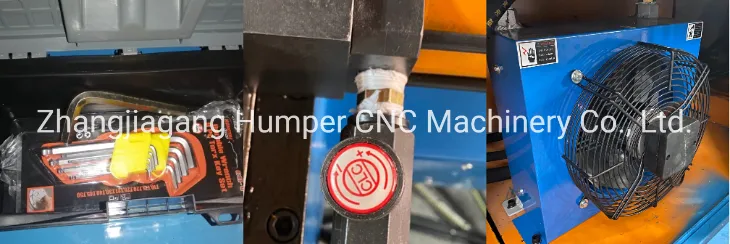

Hydraulic Pressure System
Specifications

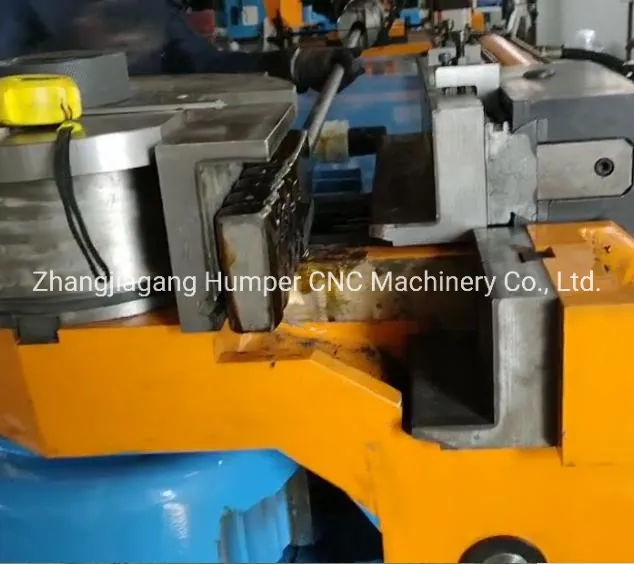

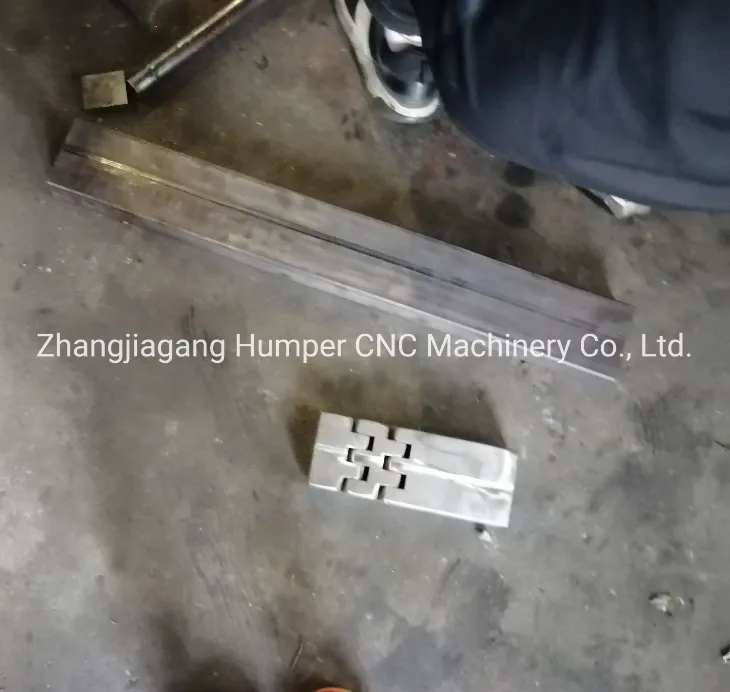

Bending Die Sets:

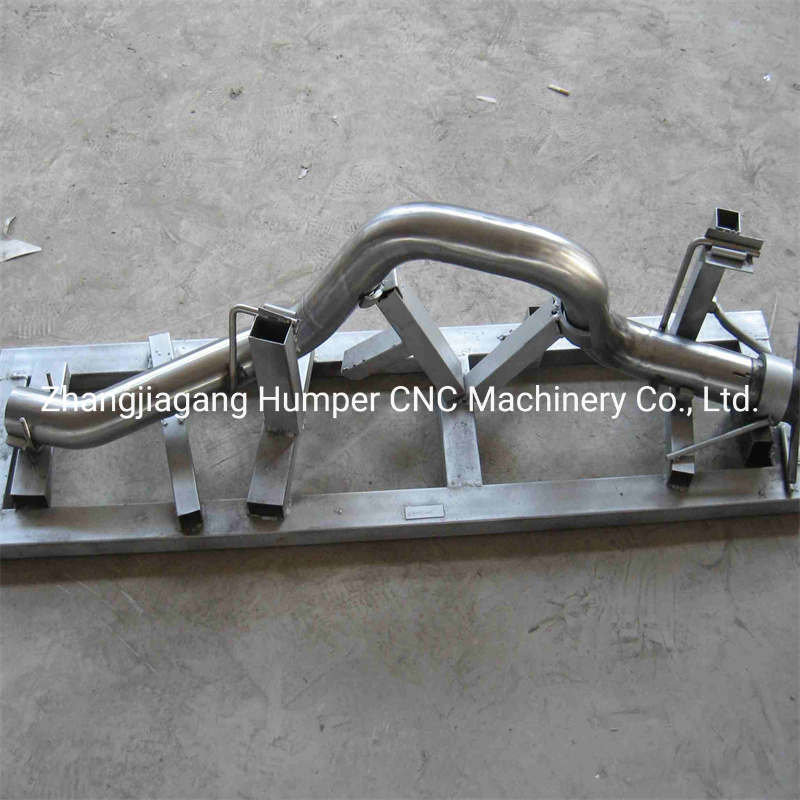

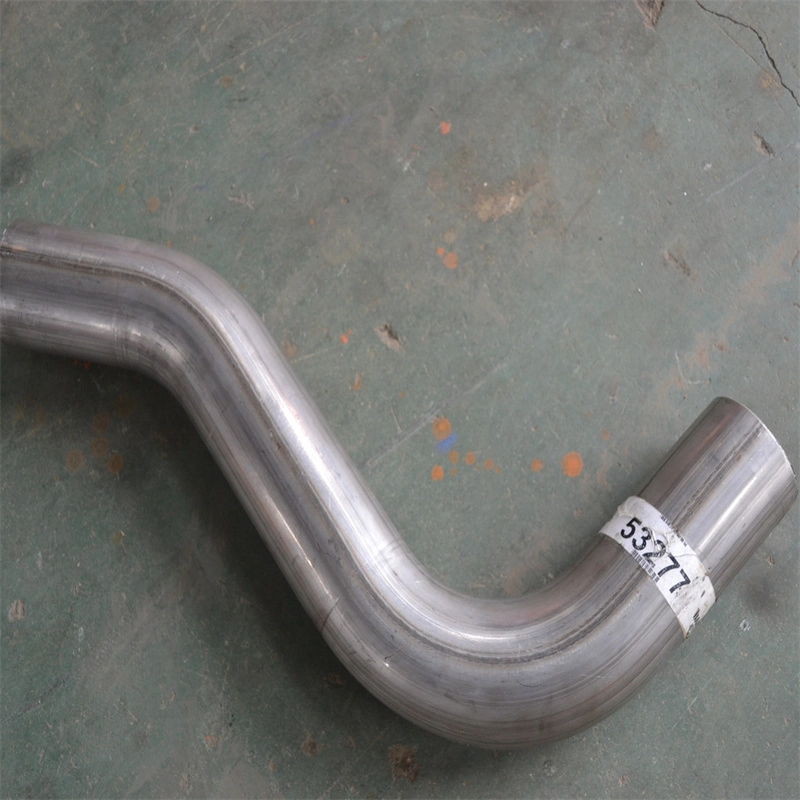

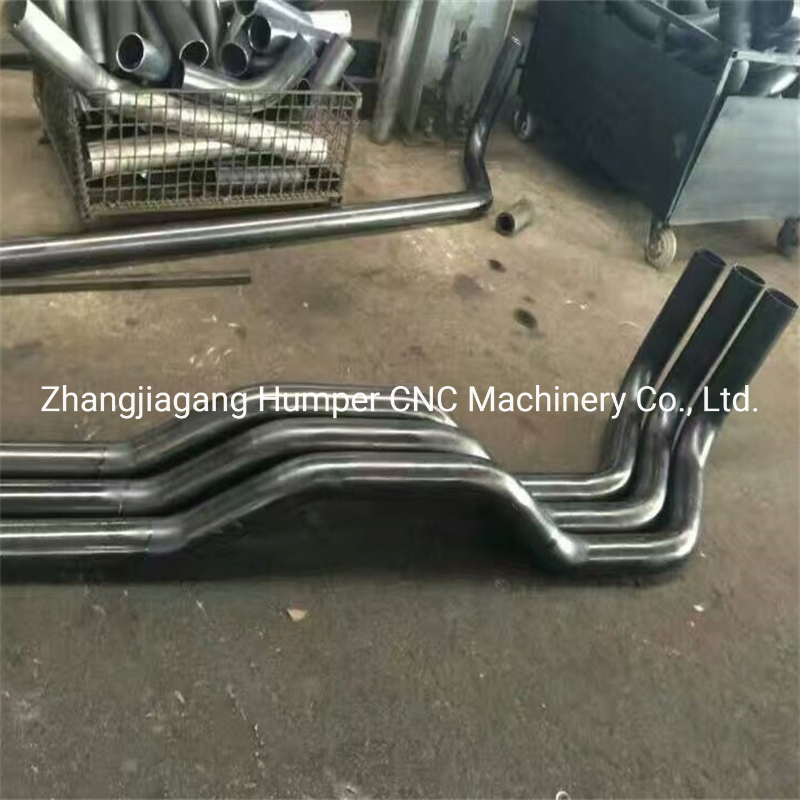

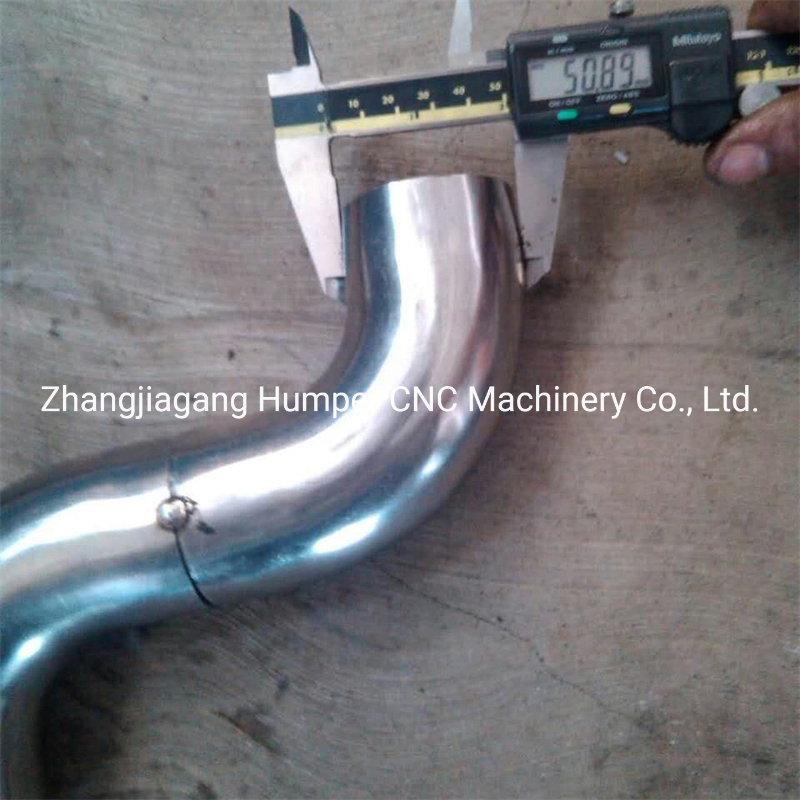

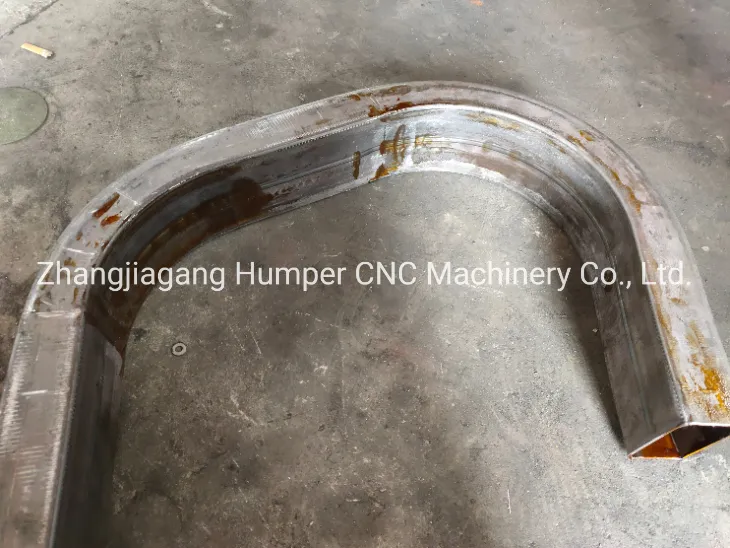

Bending Samples:

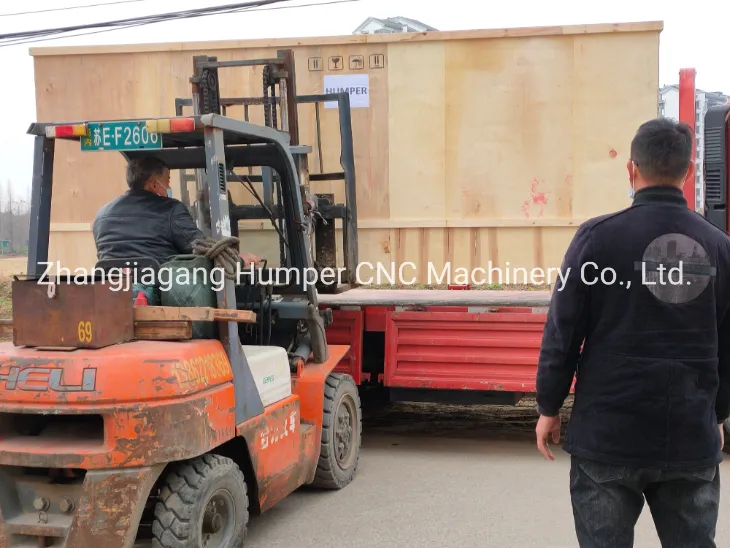

Package: Woodbox
Payment terms and After sales service:
1.Payment terms: 30% by T/T payment in advance, 70% by T/T before shipment.
2.Delivery time: Usually no later than 15 days after receiving the 30% by T/T payment in advance.
3.Package: Wooden box.
4.Warranty period: One year. During the year, if any spare parts of the machine are naturally damaged, we support to send it to the customer for free, but the freight cost should be borne by customer.
5.If it is needed, we can send our engineer to the customer's factory for installing. The customer should provide our engineers air tickets of both coming and back, commission, hotel, food, drinking and other needed help; The customer should ensure our engineers' safety and pay our engineer per day. The customer also can send the engineer to our factory to learn the operation and maintains freely.
6.Our factory provide the service for the customer forever, if the customer need operation help, the customer can contact us through Skype, Whatsapp, Wechat, Email or Telephone at any time. If very urgent, Wechat is the best choice to find us.
FAQ:
1. How do we know which type of pipe bending machine we need?
2. Do you provide machine operation training?
Yes! We provide operation video and operation manual.
You can find us through Call/Wehcat /Whatsapp/Skype if you meet any operation issues.
We help to solve problems through video call.
We provide oversea aftersales service if needed.
3. Do you provide free pipe samples?
No! We charge fees of making bending die set for bending your pipe samples.
Once you place order, the fees will be cut from the machine cost.
*Mainly fit for:Furniture,plumbing and bathing equipment,handle,motorbike.automobile
fitting.ship..etc
Product Description
1)Automatic identification of dynamic characteristics of machine tool/work piece-rapid and good processing;
2)Return the core and boost with trolley-improve the appearance of corner piece.
3)The Chinese operation prompts +15 inch true color display + touch screen-simple and clear operation.
4)The graphical programming system: the processing procedure can be obtained upon the vertical tube painting system/modification on the screen-5)simple, convenient, rapid and accurate program ming.
6)Resilience measurement- the property of batches of pipes can be compared and measured. Single-step debugging function-the deformation 7)process of pipes is observed closely during mould trial-manufacture.
8)Automatic mould drawing-help significantly develop new products.
9)Comprehensive monitoring: Hydraulic/electrical/drive system, motor phase loss/reversal, voltage, temperature, oil pressure, automatic fault diagnosis, passwords, key, records of working hours/number, for production management.
10)Head of multi-mode bending machine can move around, it can automatically change moulds, and it has high efficiency and high accuracy.
11)Apply to: furniture, auto spare parts (exhaust pipe, silencer),bike frame,refrigeration etc.
12)Suitable materials:Steel pipe,Stainless steel pipe,copper pipe,aluminum pipe,iron etc.
Machine Details:
Main Mechanical Parts
| NO | NAME | MODEL | Quantity | Origin | Brand name | service |
| 1 | Air switch | BKND-63 | 2 | Korea | LS | One year |
| 2 | Air switch | BKND-32 | 2 | Korea | LS | |
| 3 | AC Contactor | LC1N-1810 | 3 | France | Schneider | |
| 4 | Thermal relay | LRN21 | 1 | France | Schneider | |
| 5 | Transformer | SG-5000VA | 1 | China | People Ele | |
| 6 | Transformer | JBK3-200VA | 1 | China | People Ele | |
| 7 | Switch power | LRS-350-24 | 3 | Taiwan,China | Meanwell | |
| 8 | Servo electric system | SGDM -1300W | 2 | Japan | Mitsubishi | |
| SGDM -2000W | ||||||
| 9 | PLC (CPU) | CP/H-Y20DT-D | 1 | Japan | Mitsubishi | |
| 10 | Touch screen | MT510T | 1 | Taiwan,China | Weinview | |
| 11 | Approach switch | E2A-TL5 | 12 | China | Fanics | |
| 12 | Relay | MY2NJ | 20 | France | Schneider |
Mechanical Parts And Components
| NO | NAME | Origin and Brand | service |
| 1 | Slowdown machine | Taiwan,China Tsuntien | one year |
| 2 | Beeline guide track | Taiwan,China PMI/HIWIN |
Hydraulic Pressure System
| NO | NAME | Origin and Brand | service |
| 1 | Various magnetic valve | Taiwan,China 7 Ocean | one year |
| 2 | Oil Tank | China Baoshan | |
| 3 | Seal ring | Japan Valqua | |
| 4 | Oil pipe | Taiwan,China Lianhui |
Specifications
| Machine type | SB89CNC-2A1S | |||
| Max bending capability for carbon steel | Φ89×3.5t | |||
| Max bending capability for stainless steel | Φ76×2.5t | |||
| Max. feeding distance( with mandrel) | 2700mm | |||
| Max. bending radius(R) | 400mm | |||
| Max. bending degree | 185° | |||
| Max. bending process of each pipe | 32 | |||
| Working speed | Bending | Max. 45°/sec | ||
| Rotary | Max. 270°/sec | |||
| Feeding | Max. 700mm/sec | |||
| Working accuracy | Bending angle | ±0.1° | ||
| Rotary angle | ±0.05° | |||
| Feeding length | ±0.05mm | |||
| Max. oil pressure | 12mpa | |||
| Information inputting method | Axis (Y,B,C) | |||
| Bending method | Hydraulic | |||
| Max. bending group | 500 | |||
| Power of rotary Servo motor | 1300 W | |||
| Power of feeding Servo motor | 2000 W | |||
| Electrical motor power | 11kw | |||
| Weight of machine | 3300kg | |||
| Size L W H(cm) | 550 x 110 x 160 | |||
| Remark: We can redesign the special machine according to customers' requirements. For example, we can change the Max. length of mandrel if it is needed by customers' products. | ||||
| Difference Remark: A: axis S: stack 2A1S:Rotary servo motor+feeding servo motor 4A2S:Rotary servo motor+feeding servo motor+bending servo motor+machine-head movement(left+right) servo motor 5A3S:Rotary servo motor+feeding servo motor+bending servo motor+machine-head movement(left+right,up+down) servo motors | ||||
Bending Die Sets:

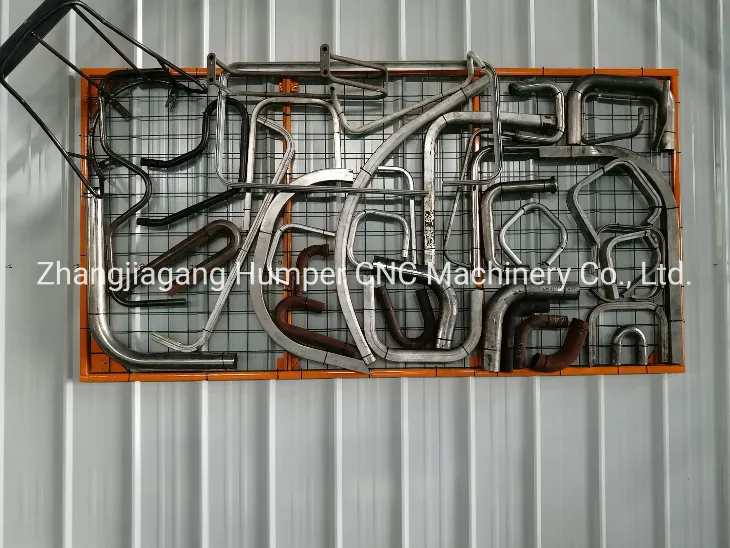

Bending Samples:
Package: Woodbox
Payment terms and After sales service:
1.Payment terms: 30% by T/T payment in advance, 70% by T/T before shipment.
2.Delivery time: Usually no later than 15 days after receiving the 30% by T/T payment in advance.
3.Package: Wooden box.
4.Warranty period: One year. During the year, if any spare parts of the machine are naturally damaged, we support to send it to the customer for free, but the freight cost should be borne by customer.
5.If it is needed, we can send our engineer to the customer's factory for installing. The customer should provide our engineers air tickets of both coming and back, commission, hotel, food, drinking and other needed help; The customer should ensure our engineers' safety and pay our engineer per day. The customer also can send the engineer to our factory to learn the operation and maintains freely.
6.Our factory provide the service for the customer forever, if the customer need operation help, the customer can contact us through Skype, Whatsapp, Wechat, Email or Telephone at any time. If very urgent, Wechat is the best choice to find us.
FAQ:
1. How do we know which type of pipe bending machine we need?
We have professional engineers. They'll give the most suitable and professional suggetions. You have to inform us following details:
- Pipe Material
- Pipe Outside Diameter(OD)
- Thickness
- Bending radius (CLR)
- How many bending angles in one pipe ? The CLR for all bending angles is the same one or not?
- The CAD drawings(or sending sample pipes to us) if possible
2. Do you provide machine operation training?
Yes! We provide operation video and operation manual.
You can find us through Call/Wehcat /Whatsapp/Skype if you meet any operation issues.
We help to solve problems through video call.
We provide oversea aftersales service if needed.
3. Do you provide free pipe samples?
No! We charge fees of making bending die set for bending your pipe samples.
