15330-37020 Timing Control Valve Vvt for Toyota Yaris Vios Matrix Corolla Auris Avensis Wish Levin Noahnew 15330-37020 1533037020 Timing Control 1533037020

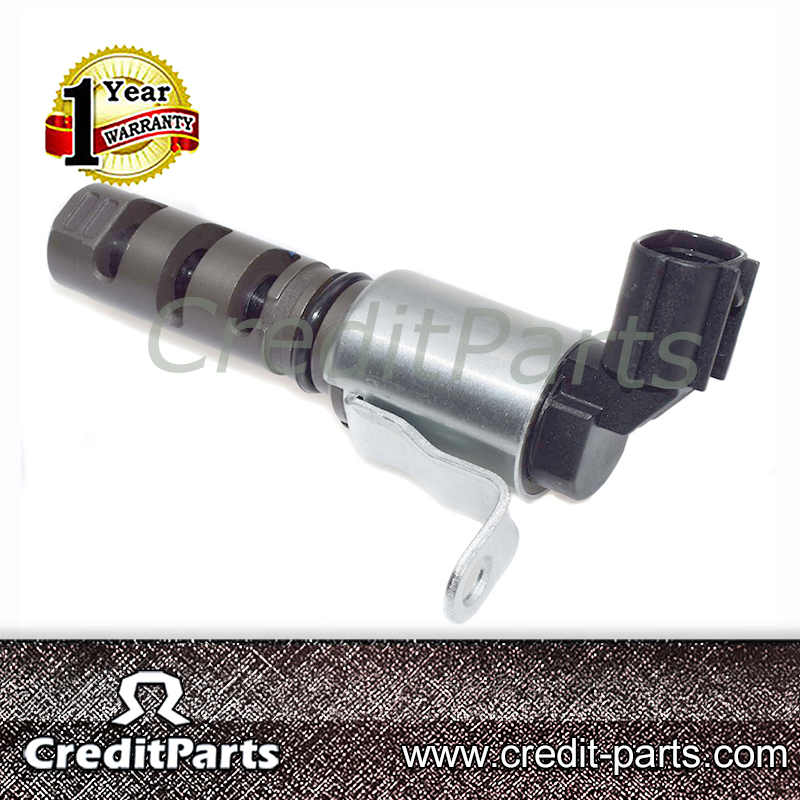

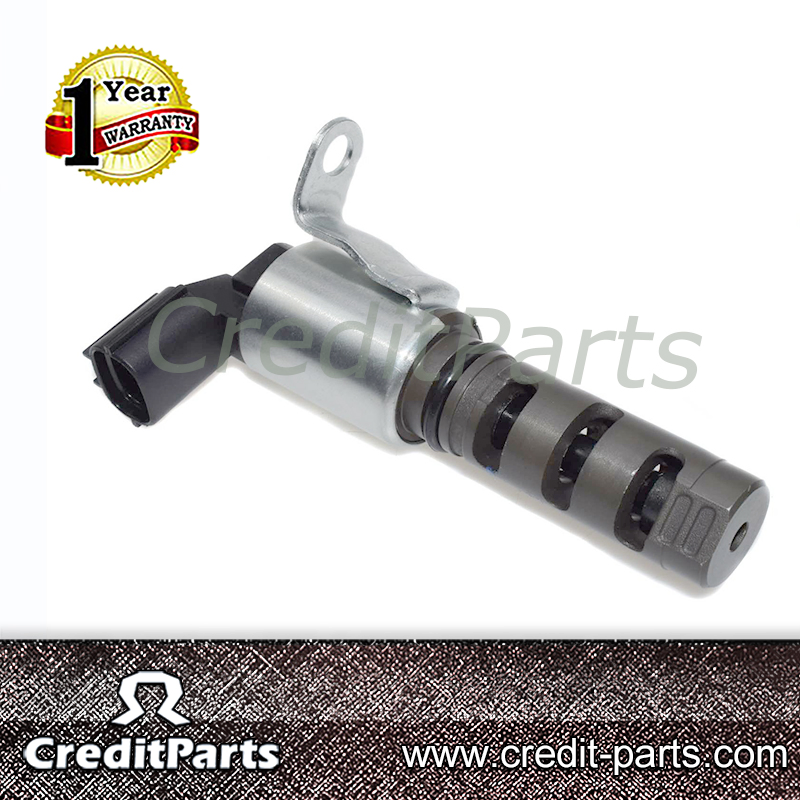

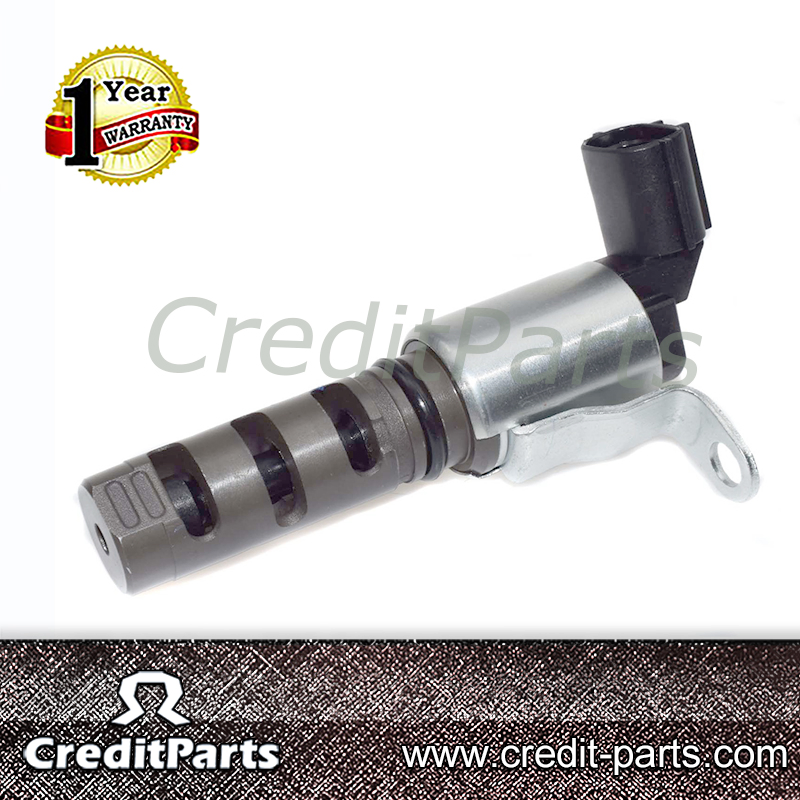

Item Name: Variable Valve Timing Solenoid


Manufacturer Part Number:15330-37020
Interchange Part Number:15330-37020


QUALITY GURANTEED


     100% brand new. Reasonable price with OEM quality, saves you hundreds of dollars from car dealership


1 YEARS WARRANTY


     All HISPORT productions enjoy 1 YEARS WARRANTY Guaranteed. In terms of any problem of this product, you can send emails as soon We will provide you excellent customer service.


OBD-II Trouble Code



     OBD-II Trouble Code caused will point to failed parts, like P0010 (intake side circuit malfunction), P0011 (intake side actuator solenoid timing over-advanced), P0013 (exhaust side circuit malfunction) , P0014 (exhaust side actuator solenoid timing over-advanced).


Vehicle Fitment


Lexus 2016-11,
Scion 2016-08,
Toyota 2016-09

Installation


Loosen metal screw clamps on throttle body and air cleaner box intake tube to removed plastic engine Intake top.
Remove oil cap, pull plastic cover off.
Remove both electrical connectors of solenoids.
Remove intake solenoid by using a 10mm socket.
Wipe off the dripping oil that around the mounting hole; Apply clean oil to rubber O ring on upper end of solenoid.
Install Solenoids.


PLEASE NOTE


Clean dust & debris around Solenoids by using an air hose or vacuum cleaner and paint brush.
The Throttle body must be cleaned before install, otherwise, P0010 code remains.
P0014 P0011 could be caused by the valve timing need be adjusted, it also need adjust timing not only replace Solenoids.


NOTICE
    This is Not Genuine Auto Part. This is Aftermarket Part Manufactured by Hisport, Exceeds the Original Design, and Carries a 12 Month Warranty
     Please Use the VIN to Obtain the Original Part (OE) No. to Make Sure This is The Right Part for Your Vehicle. OE Number Provided in This Listing is 100% Correct
    If in Doubt, Please Send Us Your VIN, We Will Check it and reply you ASAP. Plz Make Sure Parts Purchased Here are the RIGHT Parts
