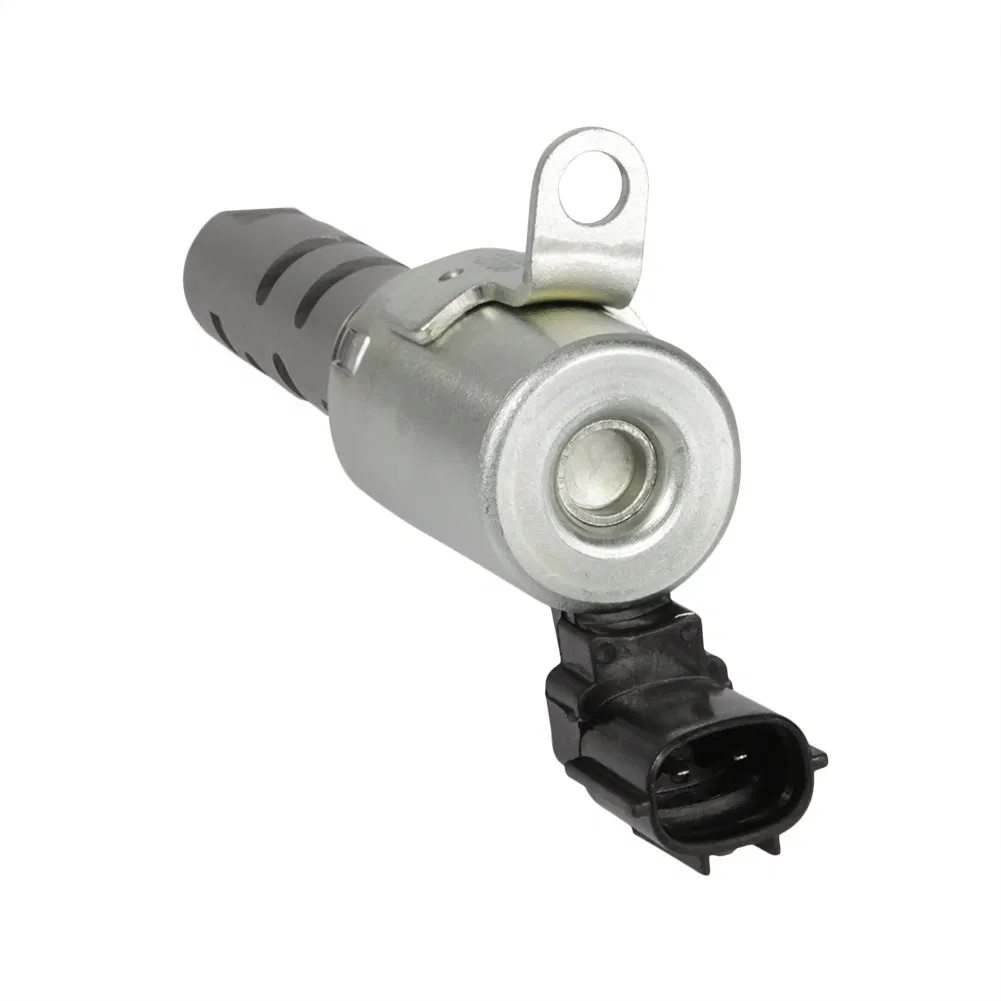

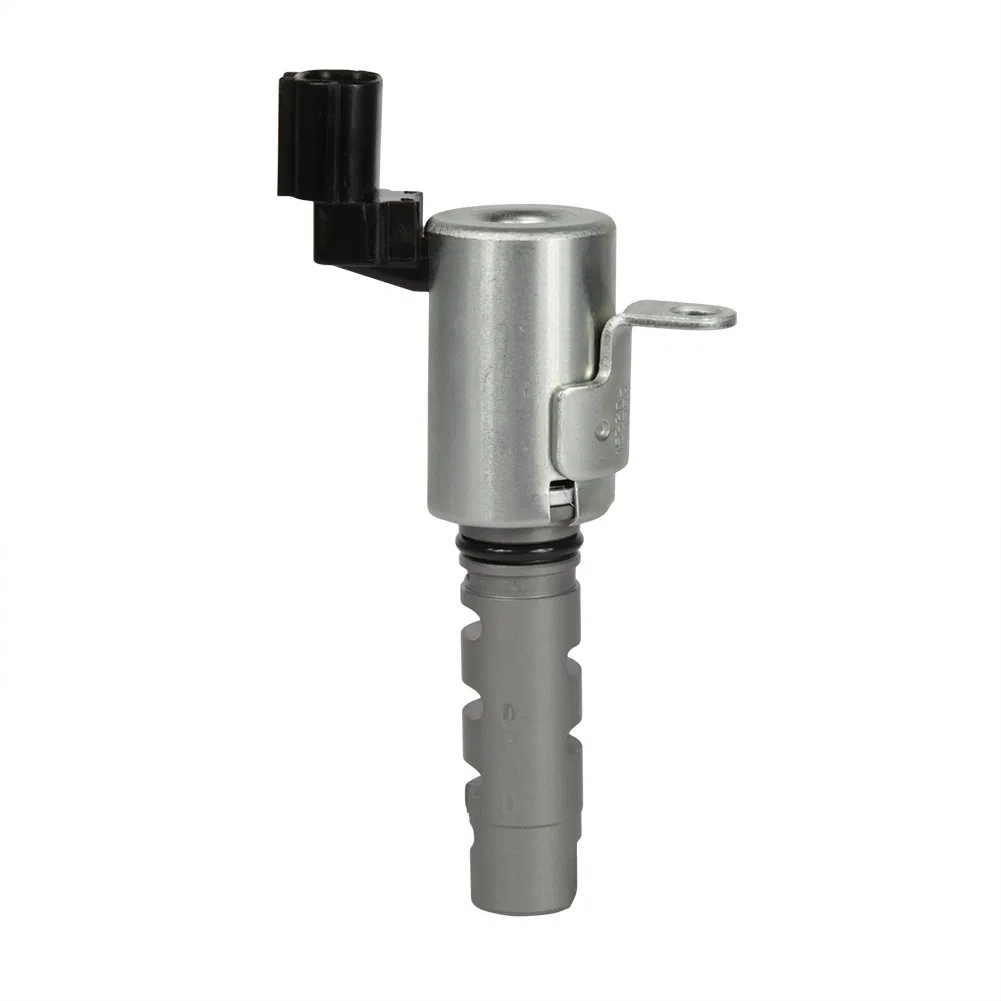

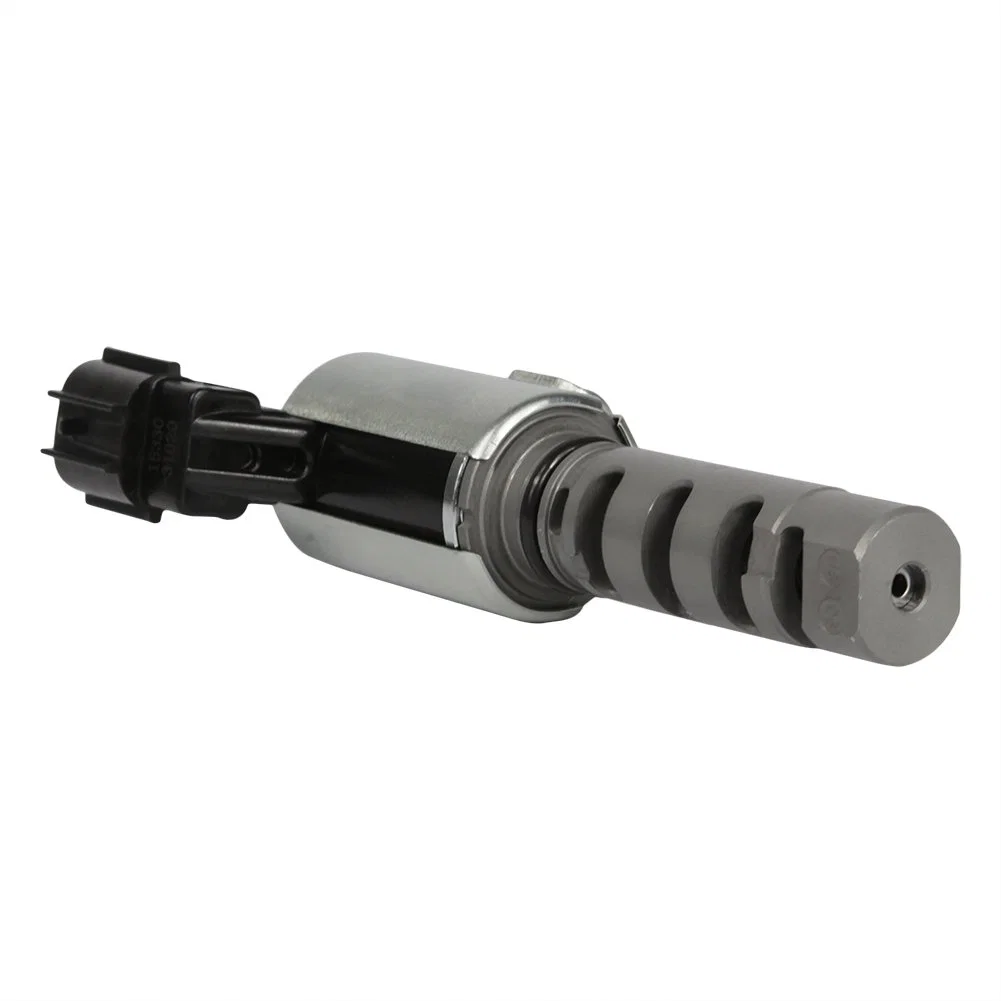

Oil Control Valve Engine Intake Vvt Solenoid 917 -212, 15330-31020 for Toyota Avalon Camry Highlander RAV4 Sienna Venza Lexus Es350 Rx350/Doicoo

Item Name: Variable Valve Timing Solenoid


Manufacturer Part Number:15330-31020
Interchange Part Number:15330-31020


QUALITY GURANTEED


     100% brand new. Reasonable price with OEM quality, saves you hundreds of dollars from car dealership


1 YEARS WARRANTY


     All HISPORT productions enjoy 1 YEARS WARRANTY Guaranteed. In terms of any problem of this product, you can send emails as soon We will provide you excellent customer service.


OBD-II Trouble Code



     OBD-II Trouble Code caused will point to failed parts, like P0010 (intake side circuit malfunction), P0011 (intake side actuator solenoid timing over-advanced), P0013 (exhaust side circuit malfunction) , P0014 (exhaust side actuator solenoid timing over-advanced).


Vehicle Fitment


Compatible With Lexus

ES350 3.5L 2007-2014
GS350 3.5L 2007
GS450H 3.5L 2007
IS250 2.5L 2006-2007
IS350 3.5L 2006-2007
RX350 3.5L 2007-2014

Compatible With Toyota

AVALON 3.5L 2005-2014
CAMRY 3.5L 2007-2014
HIGHLANDER 3.5L 2008-2014
RAV4 3.5L 2012
SIENNA 3.5L 2007-2014
VENZA 3.5L 2009-2014

Installation


Loosen metal screw clamps on throttle body and air cleaner box intake tube to removed plastic engine Intake top.
Remove oil cap, pull plastic cover off.
Remove both electrical connectors of solenoids.
Remove intake solenoid by using a 10mm socket.
Wipe off the dripping oil that around the mounting hole; Apply clean oil to rubber O ring on upper end of solenoid.
Install Solenoids.


PLEASE NOTE


Clean dust & debris around Solenoids by using an air hose or vacuum cleaner and paint brush.
The Throttle body must be cleaned before install, otherwise, P0010 code remains.
P0014 P0011 could be caused by the valve timing need be adjusted, it also need adjust timing not only replace Solenoids.


NOTICE
    This is Not Genuine Auto Part. This is Aftermarket Part Manufactured by Hisport, Exceeds the Original Design, and Carries a 12 Month Warranty
     Please Use the VIN to Obtain the Original Part (OE) No. to Make Sure This is The Right Part for Your Vehicle. OE Number Provided in This Listing is 100% Correct
    If in Doubt, Please Send Us Your VIN, We Will Check it and reply you ASAP. Plz Make Sure Parts Purchased Here are the RIGHT Parts
