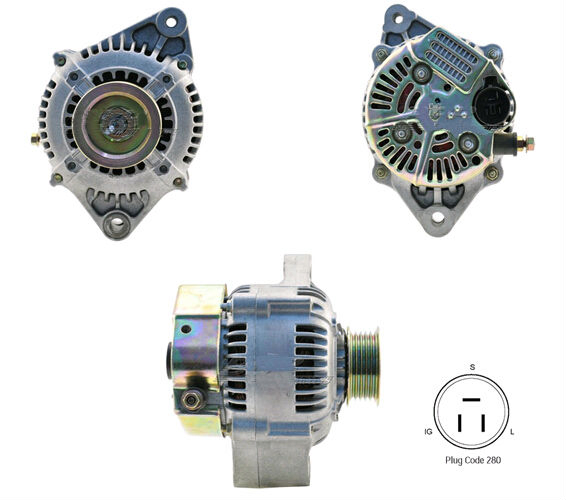

Unit TypeAlternatorPart TypeUNITVoltage12RotationCWAmperage60Pulley ClassS5RegulatorIRFan TypeIFManufacturerDENSOBriefTOYOTA CELICA 1986-875-GROOVE PULLEY 55mm OD 15mm IDSEARCH: 494928 (70 AMP VERSION)SEARCH: 494929 (LOW L-REGULATOR VERSION)SEA......
| Unit Type | Alternator |
| Part Type | UNIT |
| Voltage | 12 |
| Rotation | CW |
| Amperage | 60 |
| Pulley Class | S5 |
| Regulator | IR |
| Fan Type | IF |
| Manufacturer | DENSO |
| Brief | TOYOTA CELICA 1986-87 5-GROOVE PULLEY 55mm OD 15mm ID SEARCH: 494928 (70 AMP VERSION) SEARCH: 494929 (LOW L-REGULATOR VERSION) SEARCH: 494930 (w/LOAD RESPONSE CONTROL) |
| Detailed | This Looks Like the 14671 Except the Case Size is Bigger. This will Replace the 14671 If Desired. The Regulator (ND #126000-0400) Uses the L-Terminal as an Output Terminal. Later Units (OEM No. 100211-7040) Look Identical to This But the L-Terminal Only Puts Out a Very Small Amount of Current (ND Reg. # 126000-0610). Lester Calls This Unit the 14849. The 14611 WILL Replace the 14849 in 1988 and Up Applications BUT the 14849 with It' s Original Regulator (ND # 126000-0610) Will NOT Have Enough L-Terminal Output in Order to Use in Place of the 14611. The 494991 is the Same Except it is Used on Celica Turbo and Comes with a Shield and Plug (Which Should Be Transferred to the New Unit Upon Installation). |
| AND0125 | ARROWHEAD |
| 14611 | LESTER |
| 290-219C | PIC |
| 334-1740 | AC DELCO |
| 210-14611 | BARSANCO |
| 14611 | BBB |
| 14611 | BBB NEW |
| N14611 | BBB NEW |
| B14611 | BBB PACE |
| 186-0306 | BECK ARNLEY |
| 110678 | CARGO |
| 100211-1060 | DENSO |
| 100211-1061 | DENSO |
| 100211-2170 | DENSO |
| 100211-3220 | DENSO |
| 100211-3221 | DENSO |
| 210-0274 | DENSO FIRST TIME FIT |
| 210-0276 | DENSO FIRST TIME FIT |
| A-8141 | DIXIE |
| 914611 | DUBOIS |
| 14611 | EXCEL |
| 14847 | LESTER (OLD) |
| LRB00156 | LUCAS ELECTRICAL EUROPE |
| 47-3504 | MINNPAR |
| 14611 | MPA |
| 13-8280 | NAPA |
| 213-8280 | NAPA POWER PREMIUM PLUS |
| 213-8551 | NAPA POWER PREMIUM PLUS |
| 213-8553 | NAPA POWER PREMIUM PLUS |
| 13-8280 | NAPA POWER SUPREME |
| 13-8551 | NAPA POWER SUPREME |
| 13-8553 | NAPA POWER SUPREME |
| AL-14611 | RCP |
| 27060-16040 | TOYOTA |
| 27060-63100 | TOYOTA |
| 27060-63101 | TOYOTA |
| 27060-63102 | TOYOTA |
| A821 | USA INDUSTRIES |
| VA493 | VALEO SHORT |
| 1-1037-01ND | WAI |
| 90-29-5069 | WILSON |
| 90-29-5070 | WILSON |
| 90-29-5070 | WILSON NEW |
| 90-29-5070N | WILSON NEW |
| ALT5067 | WOOD AUTO |
| 14671 | WORLDWIDE |
| TOYOTA | Auto and Light Truck | CELICA | 1986 | 2.0L |
| TOYOTA | Auto and Light Truck | CELICA | 1987 | 2.0L |
| TOYOTA | Auto and Light Truck | CELICA | 1987 | 2.0L |
| BRG0014 | ND949100-2790 | BEARING - ROLLER |
| BRG0023 | 35-4200E | BEARING - ROLLER |
| BRG0021 | 35-4300E | BEARING - ROLLER |
| BRG0022 | ND949100-3361 | BEARING - ROLLER |
| BRG0060 | ND949100-3821 | BEARING - ROLLER |
| BEARING RETAINER - ALTERNATOR | ||
| AND7501 | ND021660-0390 | BRUSH - ALTERNATOR |
| AND1301 | ND021620-2201 | BRUSH HOLDER - ALTERNATOR |
| AND1000 | ND021551-0841 | COVER - RECTIFIER |
| IHW2612 | ND021506-0070 | DUST SHIELD - SRE BRG |
| AND1642 | ND021605-1850 | INSULATOR - ALT. B+ STUD |
| ND021605-1360 | INSULATOR - STATOR LEADS | |
| PLUG CODE | ||
| PULLEY | ||
| AND1202 | ND021580-2160 | RECTIFIER |
| AND1242 | RECTIFIER | |
| RECTIFIER (HD) | ||
| AND6003 | ND126000-0400 | REGULATOR |
| AND3002 | ND021200-2962 | ROTOR |
| AND1603 | SEAL - RUBBER - B/H TO SRE | |
| AND4008 | ND021100-2291 | STATOR |
| TEST LEAD |
