Product Description

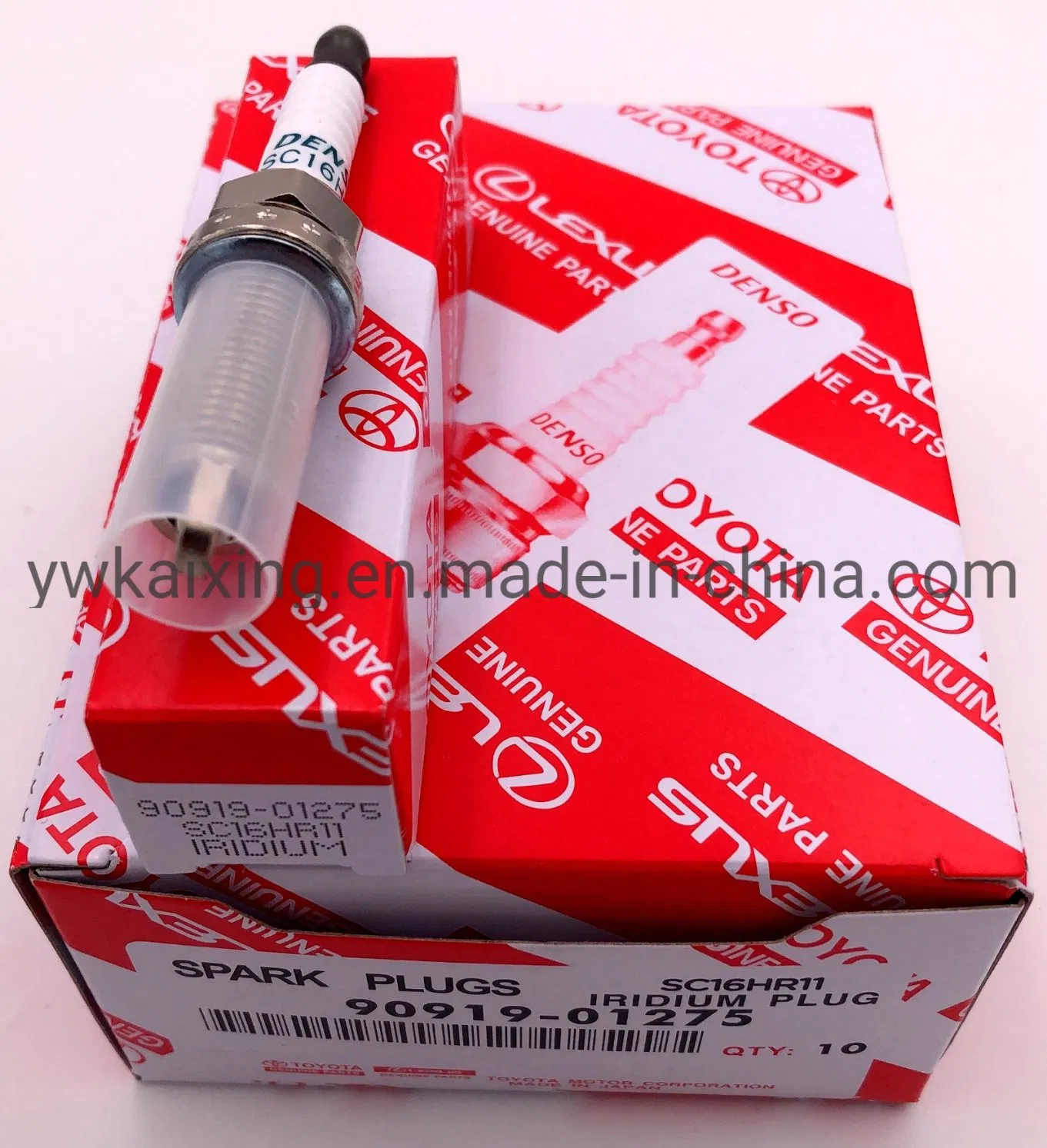

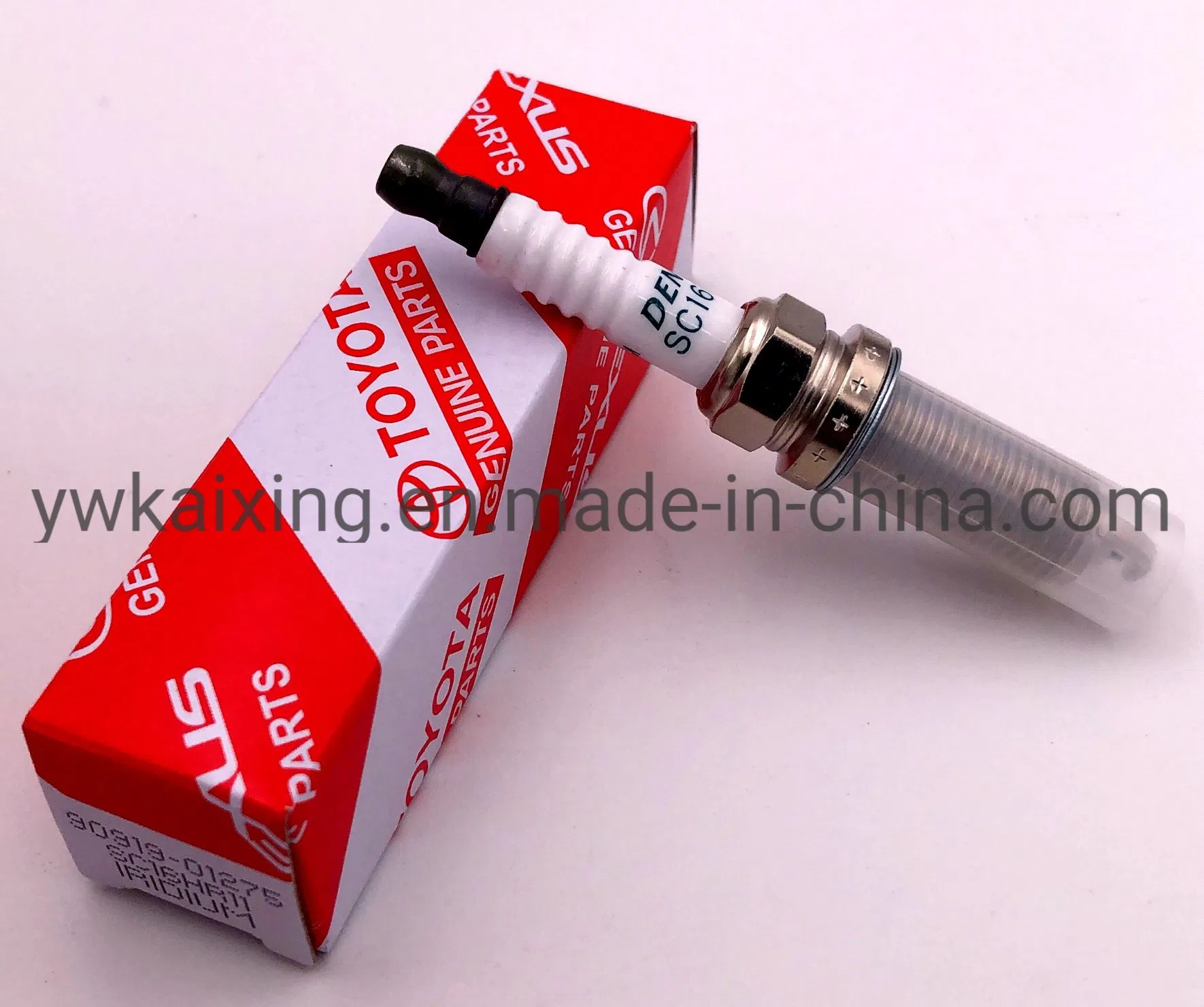

Iridium Spark Plug For Toyota Corolla Matrix Prius Scion Lexus 90919-01275
Fitment & Specification

Item: Spark Plug
OEM Part #: 90919-01275 SC16HR11
Condition: New
old DENSO PART:    3444 (DEN3444) SC20HR-11
new DENSO PART:   3499 (DEN3499) SC16HR11
old TOYOTA OEM#: 90919-01253
new TOYOTA OEM#: 90919-01275
Description:

0.7mm iridium tipped laser welded fine wire Center Electrode and platinum tipped ground electrode
Machine Rolled Threads prevent seizing or cross threading during installation and removal
100% pre-fired to assure the highest quality possible
Purified alumina powder Insulator provides exceptional strength and thermal conductivity
Five-rib insulator prevents Flashover
Copper-glass seal bonds Center Electrode and insulator for a gas-tight seal

Specs:
Shell

Thread Size: 12mm
Thread Pitch: 1.25mm
Seat Type: Gasket
Resistor: Yes
Resistor Value: 5K Ohm
Reach: 26.5mm (1.04")
Hex Size: 9/16" (14mm)
Terminal Type: Solid
Overall Height: ISO
Gap: .043" (1.1mm)

Center Electrode

Material: Iridium
Type: Fine Wire
Size: 0.7mm
Projection: Projected

Ground Electrode

Material: Platinum
Type: Standard
Quantity: 1

Specifications

Torque Specs: Cast Iron: 11-18 lb. ft. Aluminum: 11-18 lb. ft.
Brand: Denso
Heat Range: 20
Longevity: 50-80k

IT IS FIT FOR
TOYOTA

Make	Model	Year	Trim Engine	Important vehicle option details
Scion	iM	2016	N 4 Cyl 1.8L	2ZRFAE; ZRE186
Scion	iQ	2012-2014	4 Cyl 1.3L	1NRFE; NGJ10
Scion	iQ	2013-2015	4 Cyl 1.3L	1NRFE; NGJ10
Scion	xD	2008-2014	4 Cyl 1.8L	2ZRFE; ZSP110
Toyota	C-HR	2017	4 Cyl 2.0L	3ZRFAE; ZGX10
Toyota	Corolla	2009-2016	CE, ECO, ECOSW, LE, S, STD 4 Cyl 1.8L	2ZRFAE, 2ZRFE; AZE141, ZRE142, ZRE172
Toyota	Corolla	2015-2017	ECO, ECOSW, LE, S, STD 4 Cyl 1.8L	2ZRFAE, 2ZRFE; ZRE172
Toyota	Corolla iM	2017	N 4 Cyl 1.8L	2ZRFAE; ZRE186
Toyota	Matrix	2009-2014	4 Cyl 1.8L	2ZRFE; AZE141, AZE144, AZE146, ZRE142
Toyota	Prius	2010-2015	E, G, L, S 4 Cyl 1.8L	2ZRFXE; ZVW30, ZVW35
Toyota	Prius	2015	G, L, S 4 Cyl 1.8L	2ZRFXE; ZVW30, ZVW35
Toyota	Prius V	2012-2016	4 Cyl 1.8L	2ZRFXE; ZVW41
Toyota	Prius V	2015-2017	4 Cyl 1.8L	2ZRFXE; ZVW41
