What Makes a Truck HX35 Turbocharger a Reliable Choice?

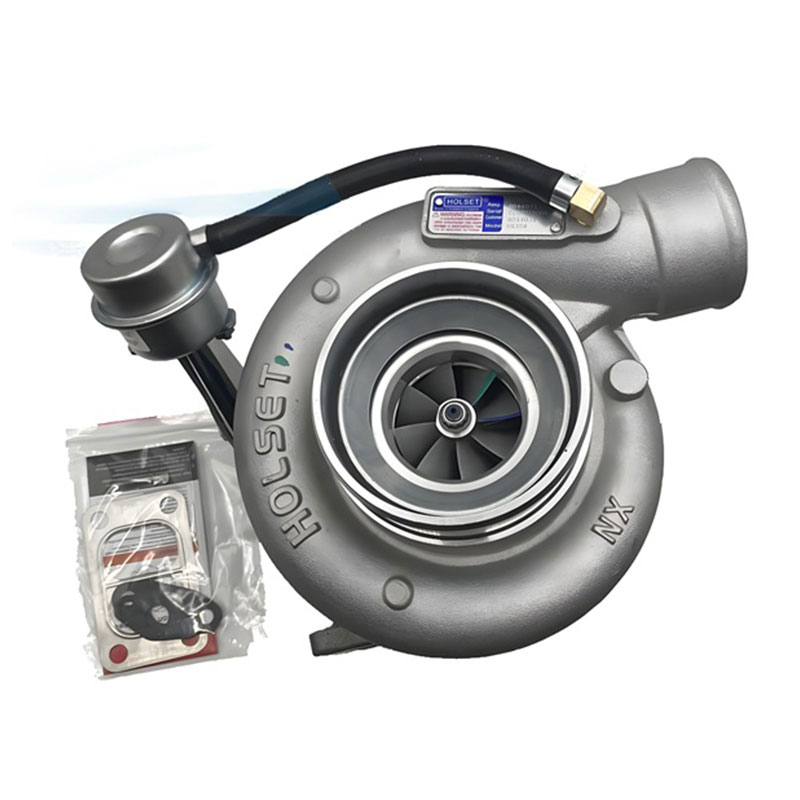

Understanding the Truck HX35 Turbocharger

The Truck HX35 Turbocharger is designed to increase the amount of air entering a diesel engine by recovering energy from exhaust gases. Instead of relying only on natural air intake, the engine receives compressed air that supports combustion under suitable operating conditions.

The HX35 family is associated with heavy-duty and medium-duty diesel applications, particularly certain Cummins engine configurations. However, the HX35 designation alone does not identify every specification of an individual assembly. Variations in turbine housings, wastegate arrangements, compressor configurations, and part numbers can affect whether a unit is appropriate for a specific truck or machine.

A typical assembly includes a compressor wheel and housing, a turbine wheel and housing, a central bearing housing, and an oil lubrication system. Wastegated versions also incorporate a mechanism that regulates exhaust flow through the turbine to help control boost pressure.

Why Correct Identification Matters

Two turbochargers may look similar externally but differ in their mounting interfaces or operating characteristics. Installing a visually similar but incompatible unit can cause fitment problems, inadequate performance, excessive exhaust backpressure, or engine damage.

For that reason, buyers should identify the complete turbocharger assembly and verify the manufacturer's part number before ordering. This is particularly important when sourcing replacement units for older trucks, where previous repairs may have introduced non-original components.

How the HX35 Turbocharger Works

The operating principle is straightforward: exhaust gas drives a turbine wheel, which shares a rotating shaft with the compressor wheel. As the turbine spins, the compressor draws in fresh air, compresses it, and directs it toward the engine intake.

1. Exhaust energy generation: Combustion produces exhaust gases that flow toward the turbine housing.
2. Turbine rotation: The energy in the exhaust stream turns the turbine wheel and shaft.
3. Air compression: The compressor wheel draws in ambient air and increases its pressure.
4. Intake delivery: Compressed air travels through the intake system to support combustion.
5. Boost regulation: Where fitted, a wastegate helps manage turbine drive energy and boost pressure.

Because the turbocharger operates at high rotational speeds and temperatures, reliable lubrication and clean airflow are essential. Oil starvation, contaminated lubricant, foreign-object damage, or excessive heat can shorten the service life of the rotating assembly.

Key Benefits for Commercial Diesel Applications

For commercial vehicle operators, a correctly matched HX35 turbocharger can help maintain the engine's intended operating characteristics while supporting productivity and predictable maintenance planning.

1. Improved Air Supply for Combustion

Compressed intake air gives a diesel engine access to more oxygen than naturally aspirated intake conditions would provide at the same operating point. When the fuel system and engine calibration are correctly matched, this supports effective combustion and the intended power output.

2. Useful Torque Delivery

Diesel trucks frequently work under changing loads, including acceleration, hill climbing, and carrying cargo. A turbocharger matched to the engine's displacement and operating range helps support the torque characteristics needed for these duties.

3. Practical Serviceability

Fixed-geometry turbocharger designs have a relatively straightforward operating principle compared with variable-geometry systems. This can simplify certain inspection and repair tasks, although specialist tools, correct specifications, and qualified technicians remain important.

4. Support for Equipment Uptime

Keeping the correct replacement assembly available can reduce delays when a turbocharger reaches the end of its service life. For fleet managers and distributors, accurate part identification and reliable supplier communication help minimize incorrect orders and repeated workshop labor.

These benefits depend on the condition of the entire engine system. A new turbocharger cannot compensate for blocked intake passages, faulty injectors, inadequate lubrication, or an obstructed exhaust system.

Typical Applications and Compatibility

HX35 turbochargers are commonly encountered in selected Cummins B-series diesel applications, including certain 5.9-liter 6BT and 6BTA configurations. Depending on the specific assembly, related applications may include commercial trucks, buses, agricultural machinery, construction equipment, and other diesel-powered equipment.

These examples describe the broader application landscape, not a guarantee that every HX35 unit fits every engine in those categories. Vehicle model year, engine variant, power rating, transmission configuration, and previous modifications can all affect compatibility.

When compatibility is uncertain, provide the supplier with clear photographs of the existing turbocharger identification plate, the engine identification details, and the mounting interfaces. This information is more dependable than selecting a unit based only on a truck's brand or approximate model year.

How to Select the Correct Truck HX35 Turbocharger

Choosing the correct replacement begins with the existing engine configuration rather than price alone. A systematic check can prevent expensive delays, incorrect deliveries, and avoidable installation work.

Step 1: Record the Original Part Number

Locate the turbocharger identification plate or stamped identification details. Record the complete part number and serial number where available. Cross-reference these details against reliable manufacturer or supplier application information.

Step 2: Confirm the Engine Specification

Document the engine model, displacement, rated output, and equipment application. If the engine or turbocharger has been modified, disclose those changes before confirming an order.

Step 3: Compare Physical Interfaces

Verify the turbine inlet, exhaust outlet, compressor outlet, mounting points, oil feed, and oil return. Confirm that any wastegate actuator or control arrangement matches the intended application.

Step 4: Evaluate Product Condition and Documentation

For a new, remanufactured, or rebuilt assembly, ask what work has been performed and what inspection records are available. Depending on the product, useful documentation may include component inspection results, balancing records, replacement-parts information, and warranty terms.

Step 5: Confirm Commercial Details

For wholesale orders, confirm minimum order quantities, packaging, lead times, shipping terms, available stock, and after-sales support. Request a written quotation that clearly identifies the supplied part number and included accessories.

Common Turbocharger Problems and Warning Signs

Turbocharger symptoms often overlap with faults elsewhere in the engine. Diagnosing the root cause before replacing parts helps avoid unnecessary expenses and repeat failures.

Some oil residue in intake plumbing does not automatically prove that the turbocharger has failed. Likewise, shaft movement must be evaluated against the manufacturer's specifications for the specific bearing design. Avoid condemning an assembly based on a single symptom.

If the turbocharger makes contact between rotating and stationary components, shows severe damage, or loses lubrication, stop operation and arrange a professional inspection. Continuing to run a damaged unit can cause further engine damage.

Maintenance Practices That Extend Service Life

Turbocharger durability depends heavily on the conditions in which it operates. Regular inspections and correct engine servicing can reduce the likelihood of premature failure.

• Maintain clean engine oil: Follow the engine manufacturer's oil specification and service intervals. Contaminated or degraded oil can damage turbocharger bearings.
• Inspect the lubrication system: Check the oil feed and drain lines for restrictions, leaks, contamination, or incorrect installation.
• Replace air filters when required: Dust and debris entering the compressor can damage the wheel and reduce performance.
• Check intake and charge-air connections: Loose clamps, damaged hoses, and leaking joints can reduce boost and affect engine performance.
• Inspect exhaust components: Look for leaks, cracks, and restrictions that may affect turbine operation.
• Investigate unusual oil consumption: Check crankcase ventilation, oil drainage, engine wear, and the turbocharger before assuming a single cause.
• Follow appropriate operating procedures: Avoid unnecessary high-load operation when the engine is not properly warmed up, and follow the engine manufacturer's shutdown guidance after demanding work.

Maintenance intervals should be based on the engine manufacturer's instructions, the working environment, and the vehicle's duty cycle. Trucks operating in dusty environments or under sustained heavy loads may require more frequent inspections.

Installation and Quality Inspection Checklist

A replacement turbocharger can fail prematurely if the cause of the original failure remains unresolved. Before fitting a new assembly, the technician should investigate the previous failure and confirm that the surrounding systems are clean and serviceable.

Before Installation

• Confirm the replacement part number and engine application.
• Inspect the air intake and exhaust systems for debris or contamination.
• Replace the engine oil and filters according to the manufacturer's instructions when required.
• Check oil feed and return lines for blockage, contamination, or damage.
• Inspect the compressor and turbine housings for visible shipping or handling damage.
• Prepare the correct gaskets, seals, fasteners, and approved installation tools.

During and After Installation

• Install the assembly using the specified tightening sequence and torque values.
• Ensure oil inlet and drain connections are correctly positioned and unrestricted.
• Prime the lubrication system using the approved procedure before the turbocharger is exposed to normal operation.
• Check intake, exhaust, and oil connections for leaks.
• Verify boost control operation and inspect engine data under the prescribed test procedure.
• Investigate unusual noise, smoke, oil leakage, or warning codes before returning the vehicle to service.

Exact installation and priming procedures vary by engine and turbocharger assembly. Use the relevant service manual for torque values, lubrication requirements, and commissioning instructions rather than relying on generic figures.

How to Source HX35 Turbochargers for Business

For importers, wholesalers, repair networks, and fleet maintenance companies, a dependable sourcing process should balance application accuracy, product consistency, cost control, and delivery reliability.

Assess Supplier Product Knowledge

A capable supplier should be able to discuss part-number cross-references, application limitations, product configurations, and the information needed to confirm fitment. Clear communication before shipment helps reduce returns and workshop downtime.

Request Traceable Product Information

Ask for the exact supplied part number, product condition, included components, inspection documentation, and warranty coverage. If purchasing remanufactured units, clarify the scope of the rebuilding process and which components have been replaced or inspected.

Compare Total Procurement Costs

The lowest initial price is not necessarily the lowest total cost. Consider freight, import charges, packaging, warranty arrangements, expected delivery time, and the financial impact of an incorrect part.

Plan Inventory Around Verified Demand

Distributors can improve inventory decisions by tracking confirmed engine applications and frequently requested part numbers. Where several HX35 variants serve different configurations, keeping accurate product records helps prevent incorrect substitutions.

For international buyers, it is also helpful to establish a clear process for quotation requests, sample or order approval, shipping documentation, and after-sales communication. These steps support repeat business and more predictable parts procurement.

Frequently Asked Questions About Truck HX35 Turbochargers

Choose the Right Truck HX35 Turbocharger for Long-Term Reliability

A Truck HX35 Turbocharger can be an important component in maintaining the performance and productivity of compatible diesel engines. However, dependable results begin with accurate part identification, application-specific selection, proper lubrication, and careful installation.

For maintenance teams, the priority is to diagnose the original problem and verify that the replacement matches the engine. For wholesalers and importers, product documentation, clear specifications, and responsive supplier communication can help reduce procurement risks and improve customer satisfaction.

Taking these steps makes it easier to choose a suitable replacement, avoid unnecessary installation costs, and support consistent vehicle operation over time.
